DK
SERIES SLIDING GATE OPERATORS

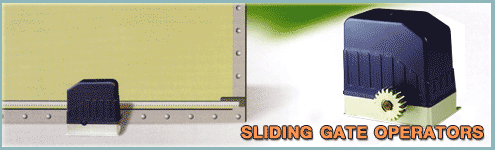

The DK series sliding gate operators
are used to drive sliding gates for residential
and industrial uses. The operators can be
fitted with gear wheel or chain wheel according
to your needs, and featured with powerful
starting strength, capable of overwork at
short time. Incase of power failure, an emergency
release key allows operate gate manually. |
|
Advanced
Features
+ Gear-drive or Chain-drive is optional
+ Self-locking electromechanical gear motor
+ Safety Obstruction Reverse (An infrared
photocells must be installed)
+ Overheat & Overload dual protection
+ Emergency release key in case of power failure |
|
 |
| Models |
DKC400 |
| Power
supply |
220 - 240V, 50/60Hz |
| Motor
speed |
1250 rpm |
| Rate
popwer |
160 w |
| Output
torque |
14N.m |
| Max.gate
weight |
600kg |
| Opening
speed |
12m/min |
| Ourput
wheel |
Gear wheel 24T |
| Working
temperature |
-40C ~ 70C |
|
|
 |
| |
 Contact
Us ...............Tel. 01-892-1066 |
| |
|
|
