L

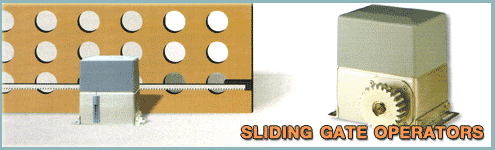

SERIES SLIDING GATE OPERATORS

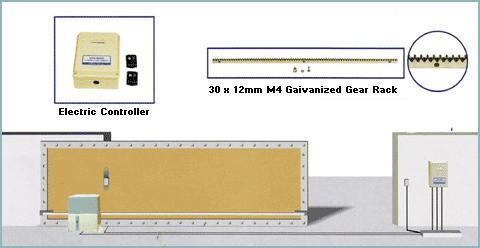

The L series sliding gate operators
are used to drive sliding gates for residential
and industrial uses. The operators can be
fitted with gear wheel or chain wheel according
to your needs, and featured with powerful
starting strength, capable of overwork at
short time. Incase of power failure, an emergency
release key allows operate gate manually. |
|
Advanced
Features
+ The self-locking oil immersed electromechanical
gear motor keeps the gate completely closed
+ Stop on closing if it hits obstruction
+ Overheat & Overload dual protection
+ Emergency release key in case of power failure |
|
 |
| Models |
L200 series |
| Power
supply |
220 - 240V, 50/60Hz |
| Motor
speed |
1250 rpm |
| Rate
popwer |
400 w |
| Output
torque |
18N.m |
| Max.gate
weight |
800kg |
|
 |
| Models |
Limit switch |
Driver type |
Opening Speed |
Control box |
| L200 |
Magetic switch |
Gear wheel 24T |
12m/min |
KZX-200w |
|
|
 |
| |
